Product Summary
The ADSP-TS201S is an ultrahigh performance, static superscalar processor optimized for large signal processing tasks and communications infrastructure.
Parametrics
Absolute maximum ratings: (1)Internal (Core) Supply Voltage (VDD): –0.3 V to +1.4 V; (2)Analog (PLL) Supply Voltage (VDD_A): –0.3 V to +1.4 V; (3)External (I/O) Supply Voltage (VDD_IO): –0.3 V to +3.5 V; (4)External (DRAM) Supply Voltage (VDD_DRAM): –0.3 V to +2.1 V; (5)Input Voltage: –0.63 V to +3.93 V; (6)Output Voltage Swing: –0.5 V to VDD_IO+0.5 V; (7)Storage Temperature Range: –65℃ to +150℃.
Features
Features: (1)Up to 600MHz, 1.67 ns instruction cycle rate; (2)24M bits of internal—on-chip—DRAM memory; (3)25 mm × 25 mm (576-ball) thermally enhanced ball grid array package; (4)Dual-computation blocks—each containing an ALU, a multiplier, a shifter, a register file, and a communications logic unit (CLU); (5)Dual-integer ALUs, providing data addressing and pointer manipulation; (6)Integrated I/O includes 14-channel DMA controller, external port, four link ports, SDRAM controller, programmable flag pins, two timers, and timer expired pin for system integration; (7)Single-precision IEEE 32-bit and extended-precision 40-bit floating-point data formats and 8-, 16-, 32-, and 64-bit fixed-point data formats.

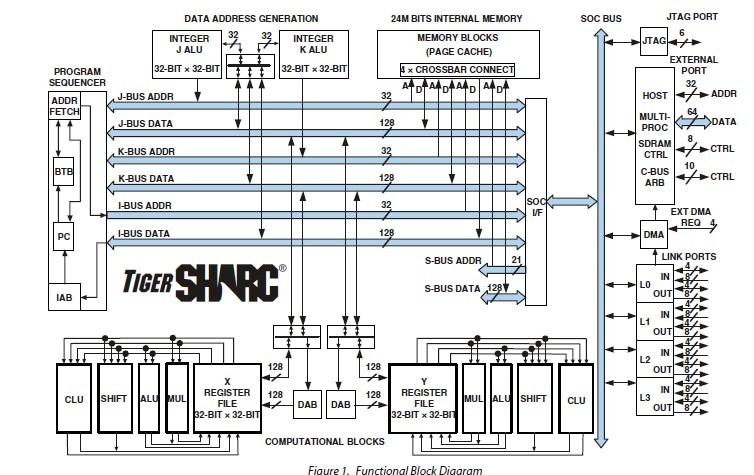

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ADSP-TS201S |
Other |
|
Data Sheet |
Negotiable |
|
||||||||
 |
ADSP-TS201SABP-050 |
|
IC PROCESSOR 500MHZ 576BGA |
Data Sheet |
|
|
||||||||
|
ADSP-TS201SABP-060 |
|
IC PROCESSOR 600MHZ 576BGA |
Data Sheet |
|
|
||||||||
|
ADSP-TS201SABPZ050 |
|
IC PROCESSOR 500MHZ 576BGA |
Data Sheet |
|
|
||||||||
|
ADSP-TS201SABPZ060 |
|
IC PROCESSOR 600MHZ 576BGA |
Data Sheet |
|
|
||||||||
|
ADSP-TS201SWBP-050 |
Analog Devices Inc. |
IC PROCESSOR 500MHZ 576BGA |
Data Sheet |
Negotiable |
|
||||||||
|
ADSP-TS201SYBPZ050 |
|
IC PROCESSOR 500MHZ 576-SBGA |
Data Sheet |
|
|
||||||||
|
ADSP-TS201SYBP-050 |
|
IC PROCESSOR 500MHZ 576-SBGA |
Data Sheet |
|
|
||||||||
