Product Summary

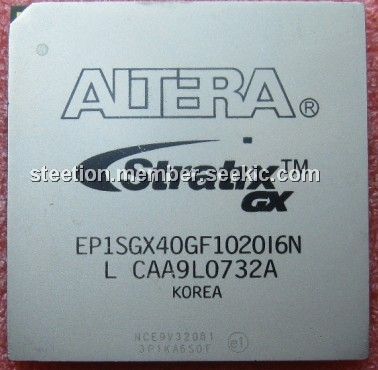

The EP1SGX40GF1020I6N is a transceiver. It includes 4 to 20 high-speed transceiver channels, each incorporating clock data recovery (CDR) technology and embedded SERDES capability at data rates of up to 3.1875 gigabits per second (Gbps).
Parametrics
Absolute maximum ratings: (1)VI, DC input voltage: –0.5 to 4.6 V; (2)IOUT, DC output current, per pin: –25 to 25 mA; (3)TSTG, Storage temperature, No bias: –65 to 150 ℃; (4)TAMB, Ambient temperature, Under bias: –65 to 135 ℃; (5)TJ, Junction temperature BGA packages, under bias: 135 ℃.
Features
Features: (1)High-speed serial transceiver channels with CDR provides 500-megabits per second (Mbps) to 3.1875-Gbps full-duplex operation; (2)Devices are available with 4, 8, 16, or 20 high-speed serial transceiver channels providing up to 127.5 Gbps of full-duplex serial bandwidth; (3)Support for transceiver-based protocols, including 10 Gigabit Ethernet attachment unit interface (XAUI), Gigabit Ethernet (GigE), and SONET/SDH; (4)Compatible with PCI Express, SMPTE 292M, Fibre Channel, and Serial RapidIO I/O standards; (5)Programmable differential output voltage (VOD), pre-emphasis, and equalization settings for improved signal integrity; (6)1.5-V pseudo current mode logic (PCML) for 500 Mbps to 3.1875 Gbps; (7)Support for LVDS, LVPECL, and 3.3-V PCML on reference clocks and receiver input pins (AC-coupled); (8)Built-in self test (BIST); (9)Hot insertion/removal protection circuitry.

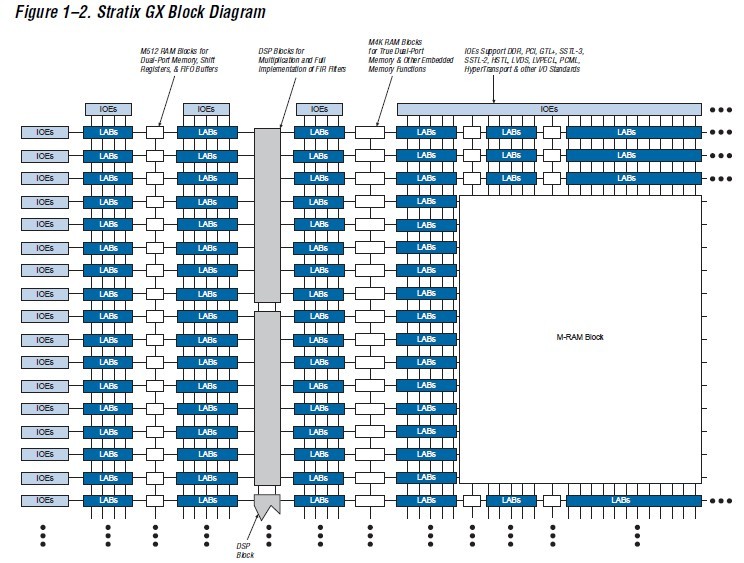

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 EP1SGX40GF1020I6N |
|
IC STRATIX GX FPGA 40K 1020-FBGA |
Data Sheet |
|
|
||||||
