Product Summary

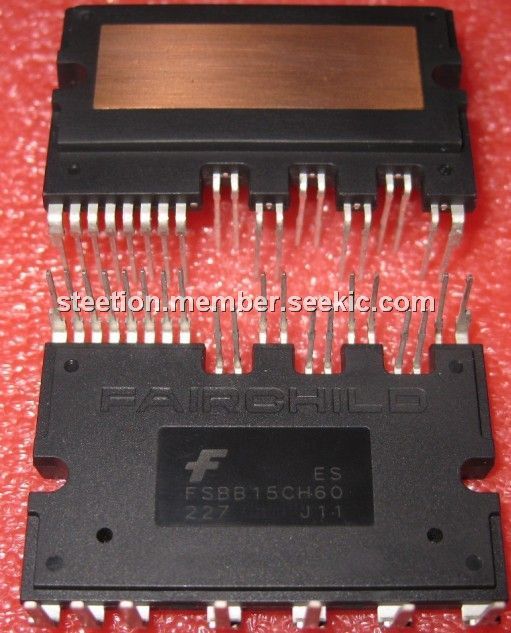

The FSBB15CH60 is an advanced smart power module. It is designed to provide very compact and high performance ac motor drives mainly targeting lowpower inverter-driven application like air conditioner and washing machine.
Parametrics
Absolute maximum ratings: (1)VPN, Supply Voltage: 450 V when applied between P- NU, NV, NW ; (2)VPN(Surge), Supply Voltage (Surge): 500 V when applied between P- NU, NV, NW; (3)VCES, Collector-emitter Voltage: 600 V; (4)± IC, Each IGBT Collector Current: 15 A when TC = 25℃; (5)± ICP, Each IGBT Collector Current (Peak): 30 A when TC = 25℃, Under 1ms Pulse Width; (6)PC, Collector Dissipation: 50 W when TC = 25℃ per One Chip; (7)TJ, Operating Junction Temperature: -20 ~ 125 ℃.
Features
Features: (1)UL Certified No.E209204 (SPM27-CA package); (2)Very low thermal resistance due to using DBC; (3)600V-15A 3-phase IGBT inverter bridge including control ICs for gate driving and protection; (4)Divided negative dc-link terminals for inverter current sensing applications; (5)Single-grounded power supply due to built-in HVIC; (6)Isolation rating of 2500Vrms/min.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 FSBB15CH60 |
Fairchild Semiconductor |
IGBT Transistors HIGH_POWER |
Data Sheet |
|
|
||||||||||||
|
FSBB15CH60B |
Fairchild Semiconductor |
IGBT Transistors 600V -15A 3-phase |
Data Sheet |
Negotiable |
|
||||||||||||
|
FSBB15CH60C |
Fairchild Semiconductor |
IGBT Transistors 600V -15A 3 Phase |
Data Sheet |
|
|
||||||||||||
|
FSBB15CH60F |
Fairchild Semiconductor |
IGBT Transistors 600V SPM |
Data Sheet |
|
|
||||||||||||
|
FSBB15CH60BT |
Fairchild Semiconductor |
IGBT Transistors 600V -15A 3-phase |
Data Sheet |
Negotiable |
|
||||||||||||
