HD64F3067RF20V

single-chip microcontroller, 100-pin QFP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.00~6.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $3.00~6.00

PartNumber:: HD64F3067RF20V

Brand:: Renesas Technology Corp - Renesas | Pack: QFP | D/C: 08+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Alin's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-04-13

From Other Seller

Part Number:HD64F3067RF20V
US $3.00 - 6.00
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
HEF4051BT

US $0.15 - 1.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

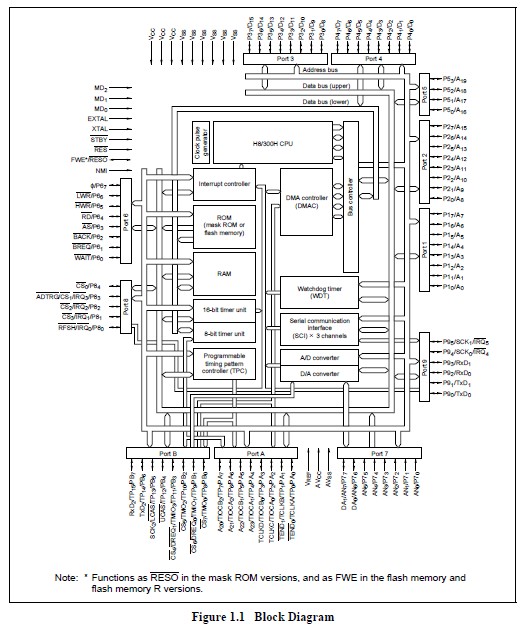

The HD64F3067RF20V is a high-performance single-chip microcontroller that integrate system supporting functions together with an H8/300H CPU core. The HD64F3067RF20V has 128 kbytes of ROM and 4 kbytes of RAM.

Parametrics

Absolute maximum ratings of Mask ROM Version: (1)Power supply voltage, VCC: –0.3 to +7.0 V; (2)Input voltage (except for port 7), Vin: –0.3 to VCC +0.3 V; (3)Input voltage (port 7,) Vin: –0.3 to AVCC +0.3 V; (4)Reference voltage, VREF: –0.3 to AVCC +0.3 V; (5)Analog power supply voltage, AVCC: –0.3 to +7.0 V; (6)Analog input voltage, VAN: –0.3 to AVCC +0.3 V; (7)Operating temperature, Topr: Regular specifications: –20 to +75 ℃; Wide-range specifications: –40 to +85 ℃; (8)Storage temperature, Tstg: –55 to +125 ℃.

Features

Features: (1)Short address mode: Maximum four channels available; Selection of I/O mode, idle mode, or repeat mode; Can be activated by compare match/input capture A interrupts from 16-bit timer channels 0 to 2, conversion-end interrupts from the A/D converter, transmit-data-empty and receive-data-full interrupts from the SCI, or external; (2)requests ; (3)Full address mode: Maximum two channels available; Selection of normal mode or block transfer mode; Can be activated by compare match/input capture A interrupts from 16-bit timer channels 0 to 2, conversion-end interrupts from the A/D converter, external requests, or auto-request; (4)Three 16-bit timer channels, capable of processing up to six pulse outputs or six pulse inputs; (5)16-bit timer counter (channels 0 to 2); (6)Two multiplexed output compare/input capture pins (channels 0 to 2); (7)Operation can be synchronized (channels 0 to 2); (8)PWM mode available (channels 0 to 2); (9)Phase counting mode available (channel 2); (10)DMAC can be activated by compare match/input capture A interrupts(channels 0 to 2).
